Crankshaft locking tool

iddy · 19 February 2011 00:43

I’ve seen a tool advertised in the States for locking the mx5 crankshaft, but can’t find one for sale here. Has anyone seen one advertised somewhere? I think I can buy one for about £18 including postage from the States, so might do that at at a push. Could probably sell it for a tenner when I’ve finished , but sods law if I did I’d need it again later.

cheers,

iddy

Mazda_mender · 28 March 2011 23:01

PM sent buddy Wink

iddy · 29 March 2011 03:08

Thanks Wayne,

I’ll show them to my welding pal.

Idris

Mr_Phoenix · 29 March 2011 18:12

Recently made one out of 1 metre length of 25mmx6mm flat steel, and made a template, so that I could bolt it on, with a cut out to go around the shaft… cost - £6ish from B&Q! Gotta love diy…

Mazda_mender · 29 March 2011 18:44

Just copy the washer that is held on with 4x 10 mm head bolts out of thicker steel, not forgetting to also make sure you put the guide pin hole in and weld or bend a arm on so it can lock up on the sway bar both ways for unlocking and locking the crank shaft 21mm bolt back up, this is good upto the last 2.5 model 2005.

NOTE:- you do not need to do this with the Short nose crank engines, unless you are replacing the front oil seal, to which if you do, a new wudruff key and crank shaft bolt needs to be used without question, and the torquing up is different to the later engine, you will only need to remove the 4 x 10 mm bolts to do a cam belt or water pump on the short nose crank engine.

M-m

Geoff_Peace · 29 March 2011 19:06

Buy an inch and a half washer or in modern terms 38mm. Agricultural machinery suppliers are a good bet. Then as Mazda Mender says measure the timing disk behind the crank pulley drill the holes, weld an arm to it and you have a crankshaft locking tool.

Regards Geoff Peace

Mazda_mender · 29 March 2011 19:49

Just in case it helps some other owners, this is a PM i sent…

Is it ok to post my own PM Ian and AT??? Rolling eyes

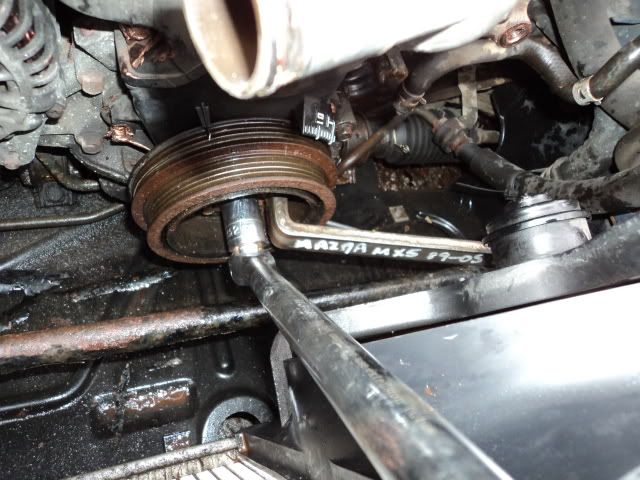

First 3 are of the locking tool .locked up ready for cracking the crank shaft bolt,the next 2 are when locking back up,note how it locks up onto the sway bar,the last 2 are of the water pump and cam belt removed and the new ones fitted back up.

crank locking tool 1
