Photograph of MX-5 RF Homura cocpit fusebox and earth point

Technical Area Electrics & ICE
1

Hi everyone,

Does anyone have nice photographs of the Homura cockpit fusebox and earthing point.

Ofiaich :grin:

2

Not at present, but I can take some for you over the weekend. From memory, is the fusebox in the passenger footwell?

3

Hi mxomatodis,

Yes! I’m not at home so can’t photograph mine! I think the cover pulls off easily but maybe the earth point is under the ‘ main plastic trim’.

I tried a Google search but didn’t find anything good, I’m working now but will try a a You-Tube search later!

Thanks,

Ofiaich :grin:

4

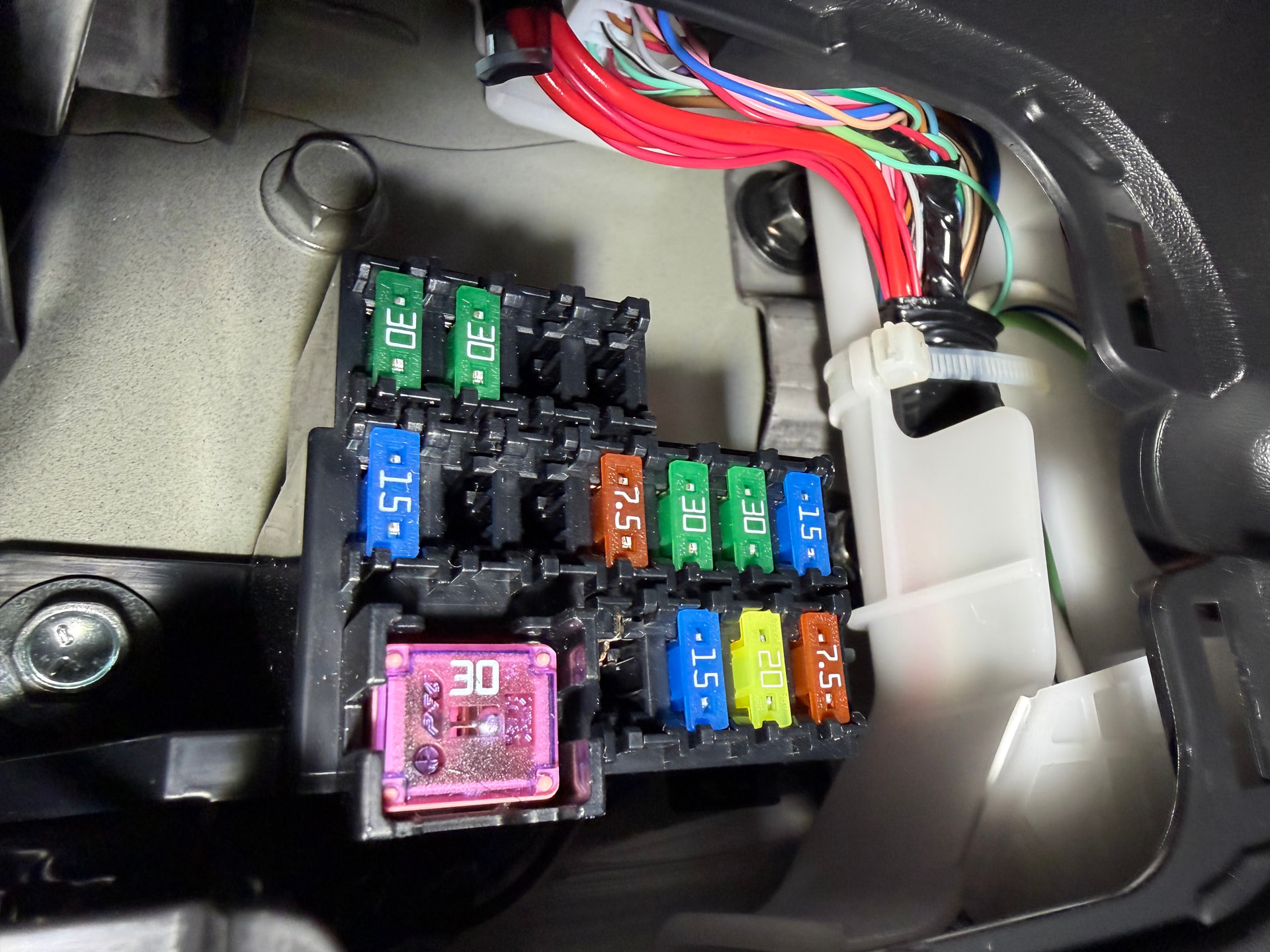

Here you are. Looks like the earth is on the right (engine bay end) below the red wires.

IMG_2017
IMG_20171920×1440 535 KB

5

Thanks mxomatosis! ( correct spelling :grinning_face: )

Seems fiddly to connect an earth wire!

Hope your ‘treasure’ is out on the road!

Still working, Japan zoom meetings…

Ofiaich :grin:

6

Yes, I think the white plastic cable cradle would need to be moved out of the way to access the earth point.

7

Thanks mxomatosis,

Were you going to hot wire your phone? I seem to recall?

Ofiaich

8

Not sure what that means! Just going to use a USB C to C cable! No charging pad like the one in our Toyota.

9

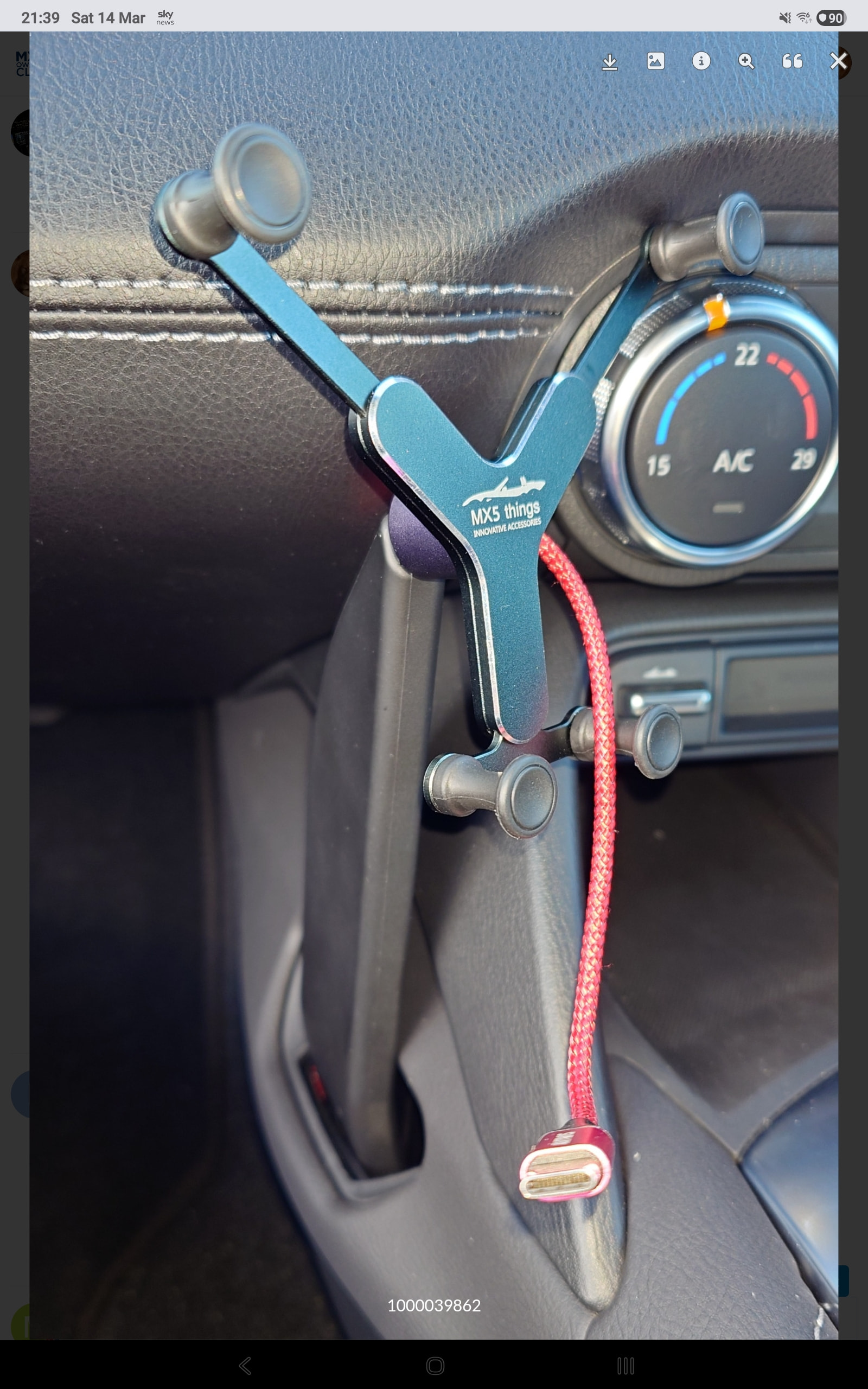

OK…. I want to have the same setup as in my 2017 RF, I’ll do it when I go back home!

1000046523
10000465231920×2560 1.34 MB

1000046521
10000465211600×2560 629 KB

10

Hi mxomatosis,

Arrived home early evening and decided to take a look at the fusebox but couldn’t find the knack to remove the cover!

Is there a tab to push in to release it? I thought with a little effort it should pull off!

I’ll look again in daylight!

** cover came off with a little extra help…

mxomatosis! Your photo is much clearer than mine! Thanks again!

Ofiaich :grin:
