Pioneer Head Unit Install with Bose - RESOLVED

Technical Area Electrics & ICE
1

Hi Everyone

I’m mid way through installing the Pioneer 77 DAB Head unit (on my NC2 with Bose) and a little stumped.

With limited instructions I’ve connected the connectors the fit together, routed GPS, microphone and rear view camera cables behind the unit but I feel like I am missing something.

I have 2 connectors which were plugged into the old Bose unit which I don’t fit into anything from the new unit.

IMG_8359
IMG_83591536×2048 173 KB

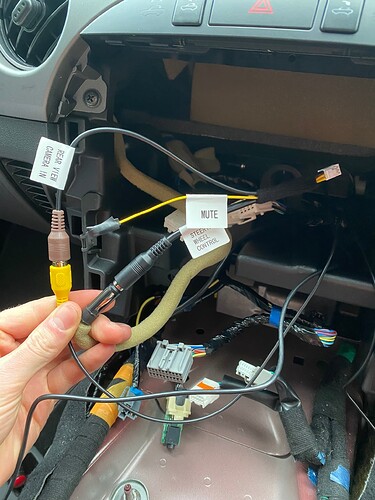

I assume the rear view camera in connects to the SWC/Back camera cord despite one end being yellow and the other connector brown.

IMG_8361
IMG_83611536×2048 258 KB

The unit came with a set of other cables which are loose, I assume I need to strip these, and connect together?

IMG_8362
IMG_83621536×2048 329 KB

What are these for?

IMG_8363
IMG_83631536×2048 187 KB

IMG_8364
IMG_83641536×2048 225 KB

IMG_8365
IMG_83651536×2048 239 KB

Is this aux-in connection right?

IMG_8366
IMG_83661536×2048 344 KB

Any help would be massively appreciated.

2

Pretty sure the one in your hand is the heater controls connector

The small white connector is for the 3.5mm aux plug

The large white connector is the main stereo to loom connector

What are these for?

IMG_8363
IMG_83631536×2048 187 KB

Those are the connections for enabling steering wheel controls to work with the new stereo.

3

Here is a wiring diagram I used when putting a chinese head unit in to my NC1.

The only difference is that I used the pre-outs from the new stereo to drive the bose amp rather than the resistor bank you will be using.

NC1 BOSE Audio Wiring Diagram ( Complete )
NC1 BOSE Audio Wiring Diagram ( Complete )1920×1281 250 KB

Pink is for the speed pulse that drives the speedo so the head unit knows speed.
With a bose stereo - there is no speed pulse behind the stereo - you would need to pick up from behind the clocks ( white wire )

Blue/white is for a signal coming from the reverse light +ve to tell the head unit to switch over to your reverse camera.

Green is for connecting to the handbrake ( it is only needed for video watching functions so you can’t watch a video unless the handbrake is on )

1 Like
4

And here is my final wiring between the new head unit and the car loom

image1920×1030 143 KB

1 Like
5

Hi there

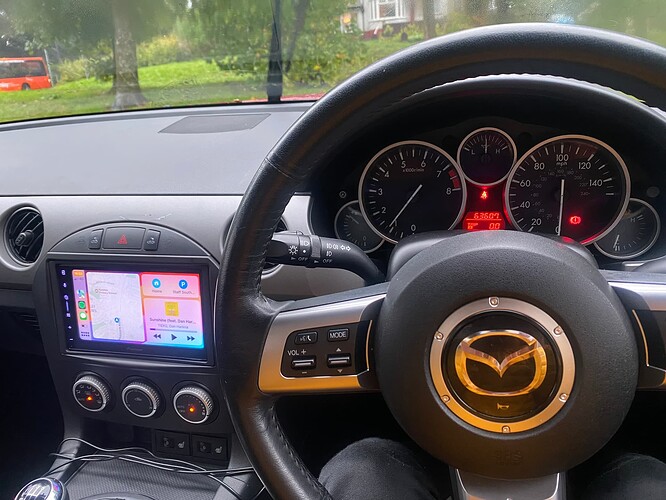

Thank you for your detailed help! Along with this and Dynamic Sounds I managed to get it all installed and working first time.

IMG_8389
IMG_83891920×1440 227 KB

Today’s job to tidy up the GPS, DAB, microphone wire routing as its not raining

Thanks again :slight_smile:
