Prop shaft Dimensions MX5 MKII

Technical Area Engine, Transmission, Exhaust etc
1
  1. My model of MX-5 is: MKII,1.8, 2000
  2. I’m based near: Derby
  3. I’m looking for technical help on: I am studying motorsport engineering and looking into redesigning/improving the OEM prop shaft, however, I cannot find technical dimensions of the prop shaft online, part number: (91-00181N).
    Also, no breakers yards seem to have any in the local region.
    Any help will be great.
2

NA1.8 shaft dimensions:

https://fixjunk.com/solomiata/solomiata/Drivetrain.html

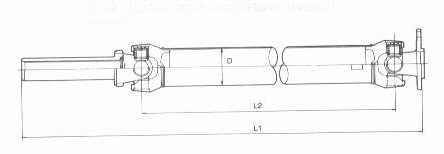

When Mazda upgraded the rear in 1994 they also had to change the driveshaft to fit the larger rear. It is 48mm shorter (L1= 1001mm vs 1049mm, 39.41/41.3" : L2= 864mm vs 816mm, 32.1/34.02) and used the larger 86-91 NA RX-7 pinion flange pattern of 4x67mm vs the 4x62mm pattern of the 1.6 rear.

Also have a read of:

1 Like
3

Thank you this was very helpful! Would you happen to know the diameter of the shaft itself?

4

Try measuring yours with a Vernier?
