My model of MX-5 is: 96 Eunos
Hello, I have just had two new side mirrors sprayed and ready to be assembled. I would like some guidance on the assembly of these mirrors as there are a few pieces that I’m not too sure on.
For the white casing, will I need to remove the large rectangular piece that is sticking out the bottom?

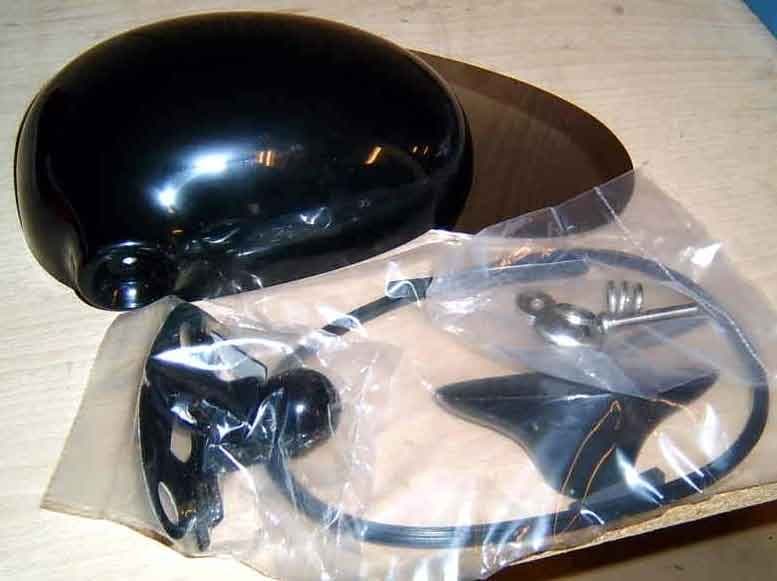

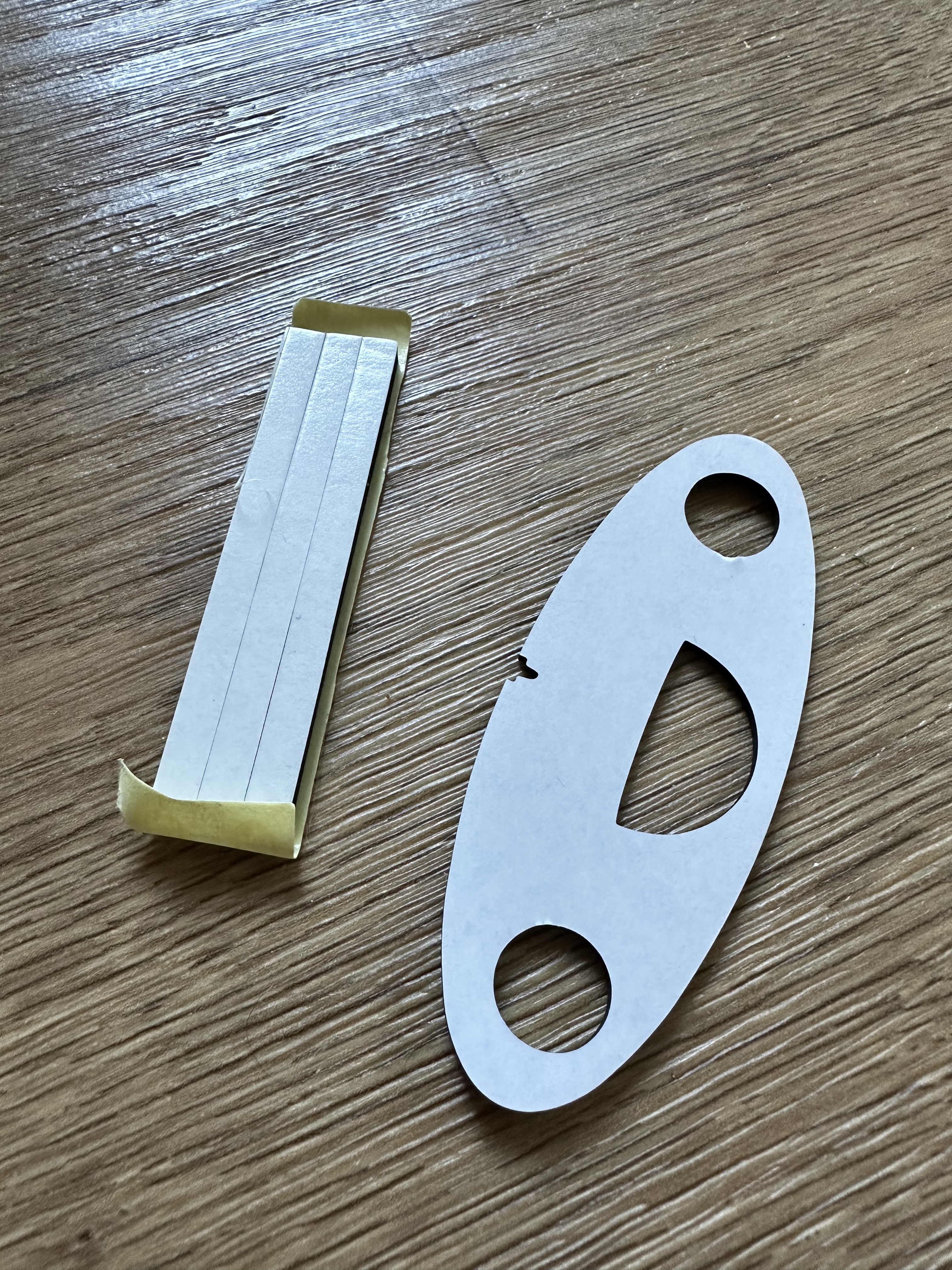

Am I right in thinking the foam piece on the right can have the white film removed so that it adheres to the body of the car? I’m also not entirely sure where I put the piece of foam with the three white strips on.
What is the order of assembly for these components? Want to make sure I don’t put anything together incorrectly.
Thanks!
MickAP
9 September 2023 12:58
2
See here below, You can cut to around 6 mins in for reassembly…
Thanks, this was useful! Still unsure what to do with the foam pieces though
leman
10 September 2023 10:10
4
The foam strips go in the mirror casing to stop the mirror glass rattling.
1 Like

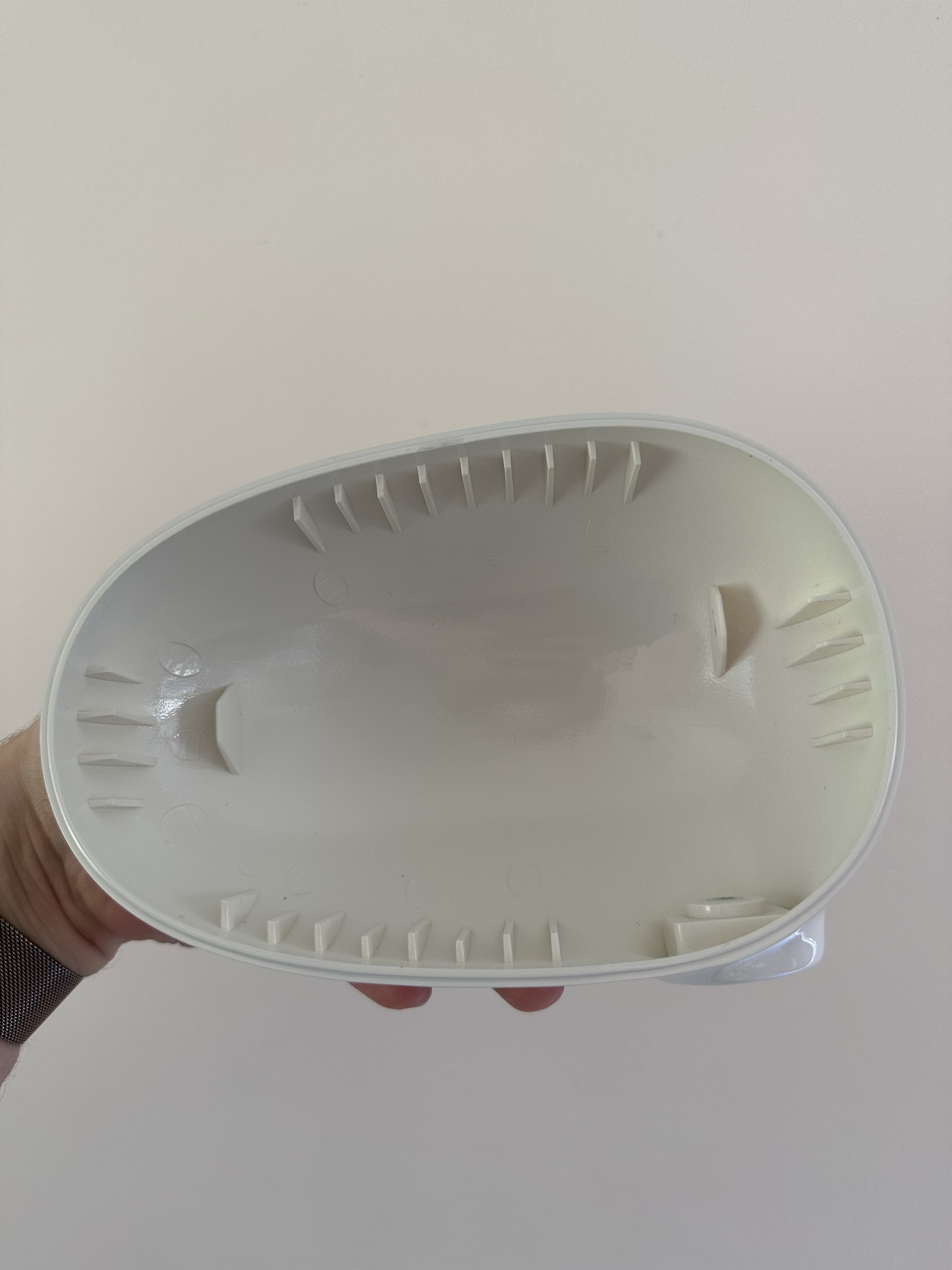

Ah I see! Would you recommend attaching them to the casing or to the mirror? The inside of my casing looks like this:
If they go inside the casing, whereabouts would you attach each strip?
leman
10 September 2023 10:53
6
I think they go on the casing on those ribs you can see

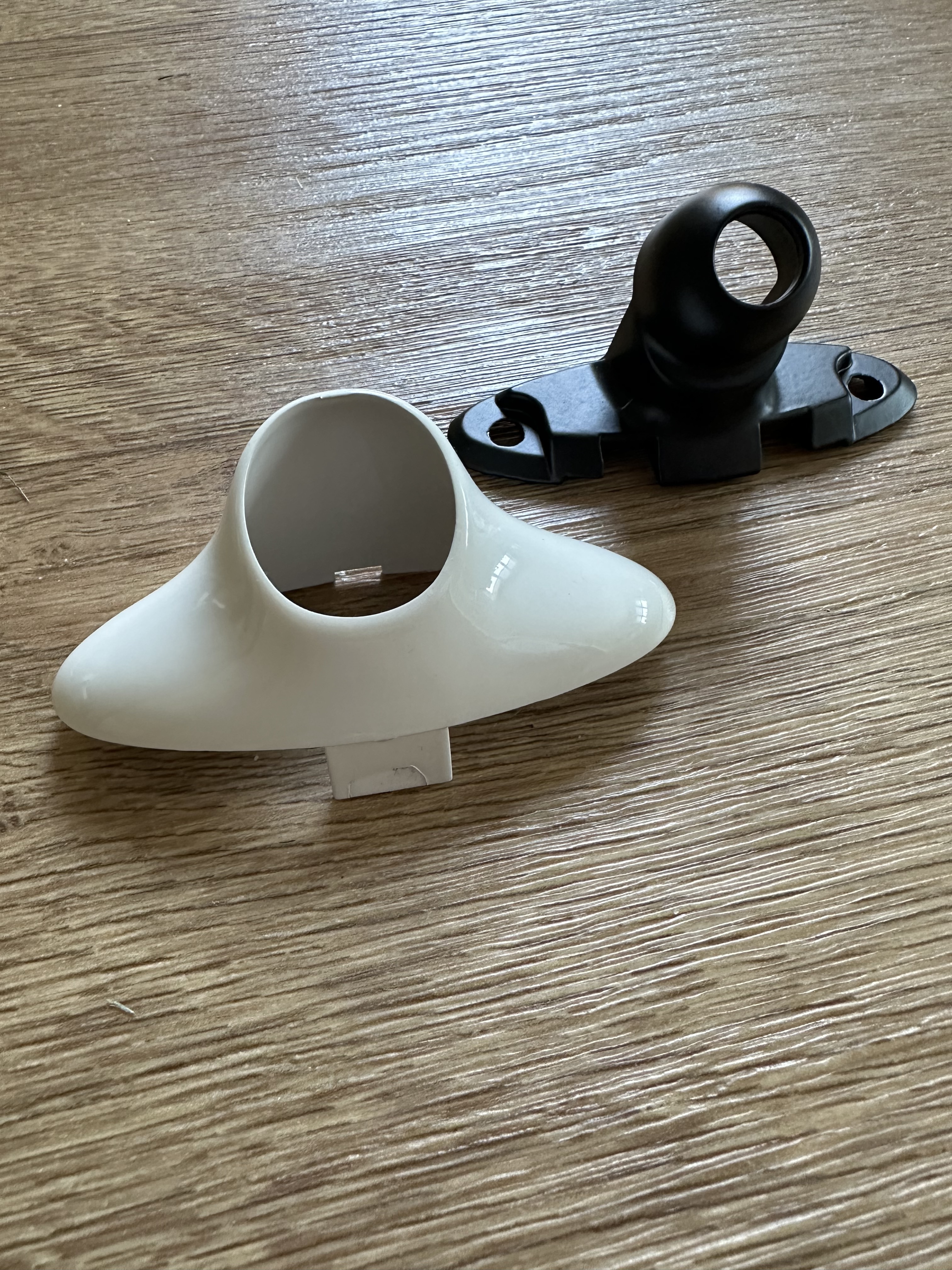

Cheers. Don’t suppose you know what I should do with the white casing that clips to the body of the car? It needs filing / cutting off, right?
leman
10 September 2023 14:11
8
I would think so, unless you want to cut a slot in the door
It’s from Autolink, this link here:
I’ve sent them an email to see if they have a step-by-step guide
leman
10 September 2023 16:59
10
Looks like the tag is just there to aid when painting then.

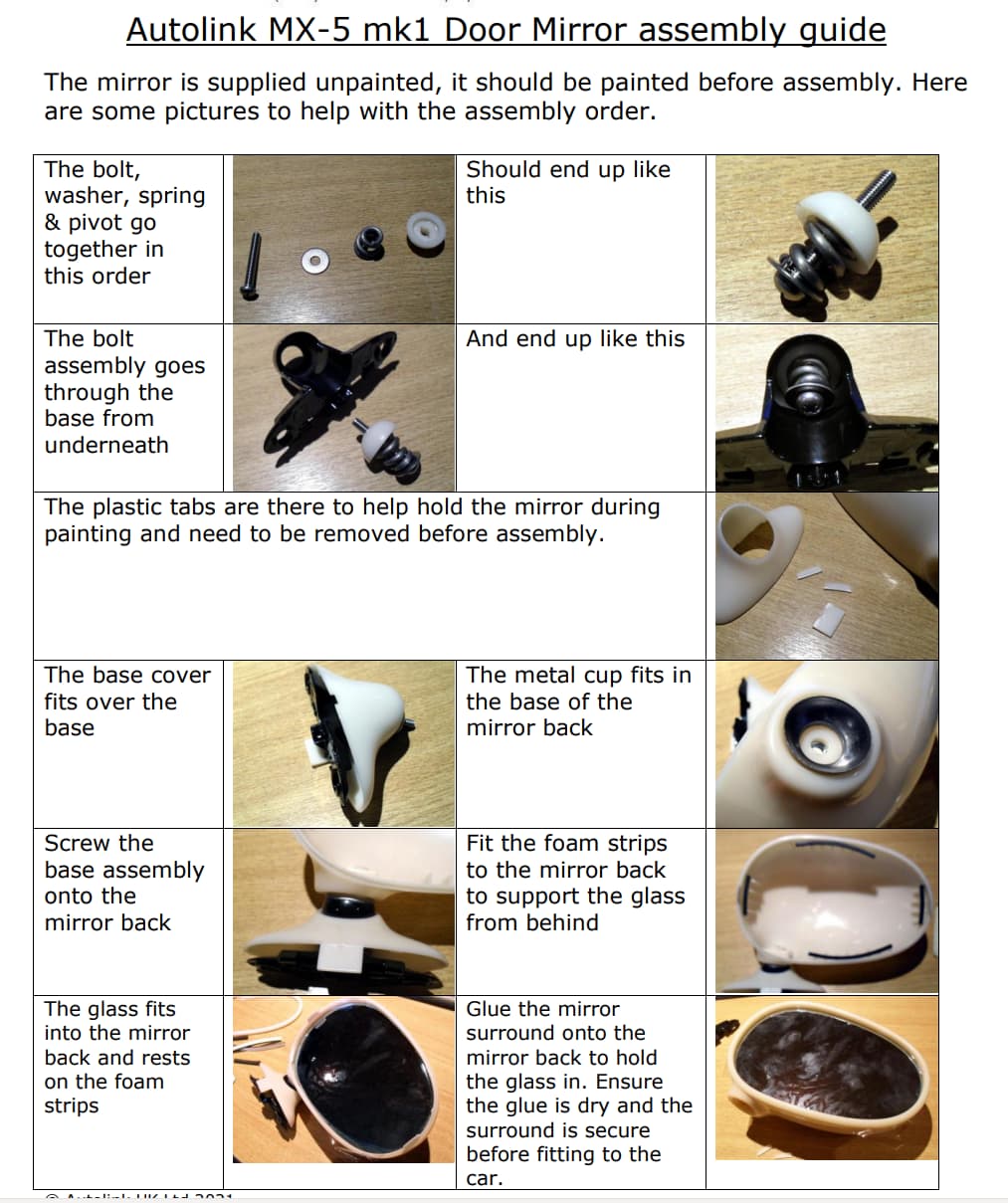

Thanks for this, really detailed guide! I recevied a reply from Autolink and this is what they sent:

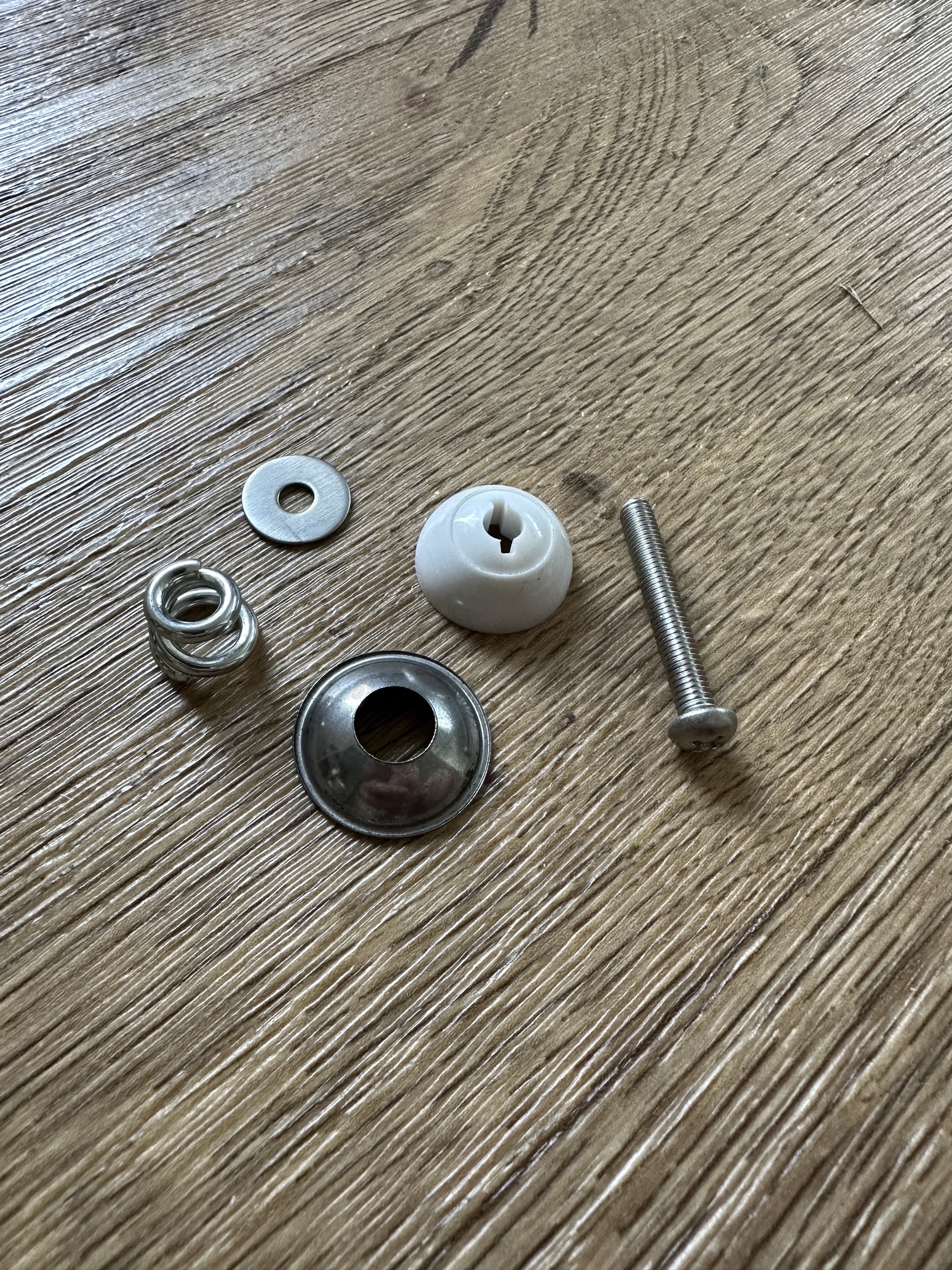

It’s slightly different to how the OEM ones are built. I’ll leave this image here for future reference!
