Heated Seats - Retro Fitting

[NicCoxTNB]

1. My model of MX-5 is: NB
2. I’m based near: Manchester
3. I’m looking for technical help or recommendations on: NBFL Heated Seat Wiring, Relays ,Etc.

Does anyone have a wiring Diagram for the Heated Seats as fitted to the NBFL?
The Haynes manual only shows fuse no 18 in the internal fuse box and thats it😥.
So power source take off, relays, switches, etc would all be useful.
I have already sourced a set of Switches.
Thanks
Regards
Nic

[Roadster_Robbie]

Any use?

[NicCoxTNB]

Thanks Robert,
That will do fine.
Regards
Nic

[NicCoxTNB]

Morning Robert,
Im just ordering up the Cables and Relays for the retro installation.
A further question - do you know where the relays are located on thr NBFL?
Thanks Again
Nic

[Roadster_Robbie]

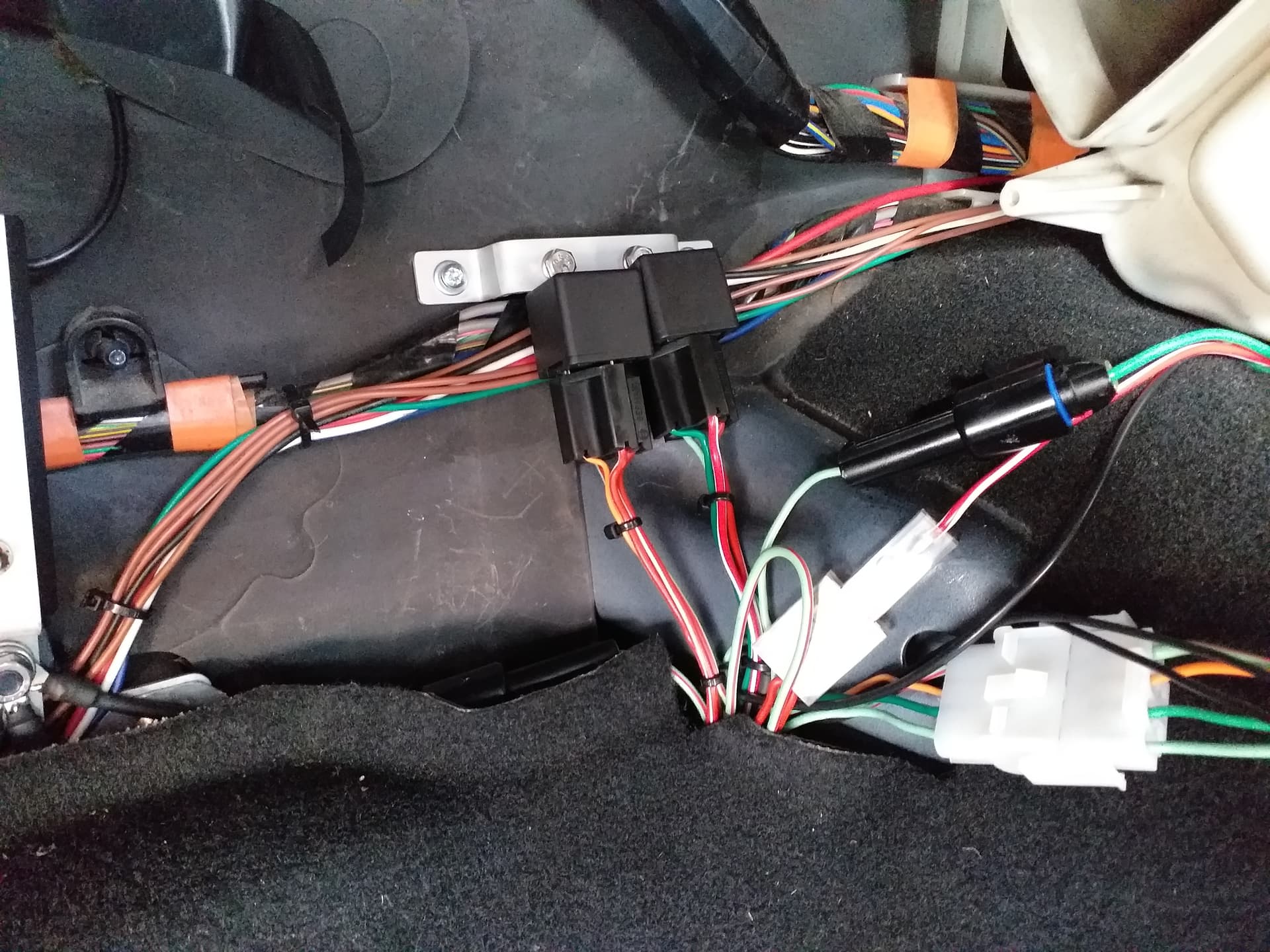

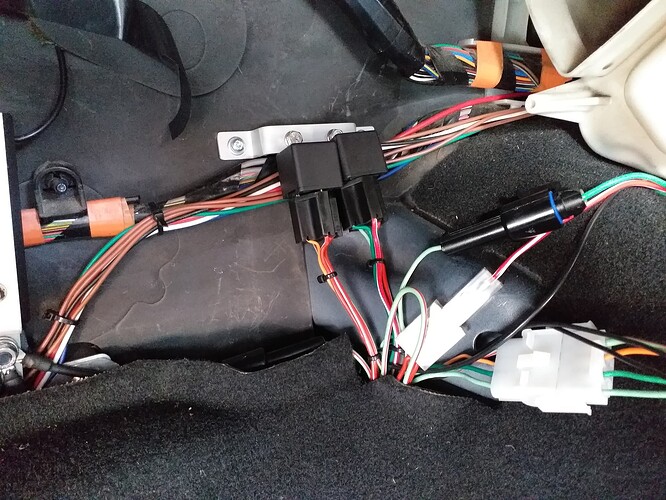

Behind the dash on the driver’s side at the base of the A pillar. There is a bracket that they slide onto.

You’ve might have already got the bracket fitted. The part number if you haven’t is NC82-67-9C1A

[NicCoxTNB]

Many thanks again Robert.
Regards
Nic

[NicCoxTNB]

Good Evening All,
Re the above, Im looking for the NBFL Heated Seat Switch Connector & Loom.
Ive tried all my usual sources plus the well known aution site to no avail😥.
If anyone can help it would be much appreciated.
Thanks
Regards
Nic Cox
