Fitted a Pioneer ND-BC9 reverse camera to the DA77 head unit I fitted last year. Wiring run alongside existing boot lid wiring, out through the grommet, cable tied to the conduit and then back through the grommet again. Had previously swapped the powered aerial so chased the wiring the same way, down the right side of the boot and out behind the drivers seat then into the middle and tucked in under the centre console. Removed the centre and right boot plastics, then the scuff plate and the poppers on the door side - didnât remove that back panel completely as the âaccess coverâ provides access once the wires are through. Used the ground at the back of the console and then the wiring loom from the head unit and Connects2 adapter made connecting the power and video straightforward. Tesa taped all the wires and cable tied to existing wiring to make it all tidy. Head unit loom had reverse input signal wire already so it was yellow RCA video cable of camera to brown RCA on loom then red power to reverse input signal (purple/white) and reverse 12v (light green on the Connects2 adapter). If you wire red power to red power, then youâll have camera on all the time with handbrake off. Wire the power to both reverse 12v and reverse input signal for reverse camera only.

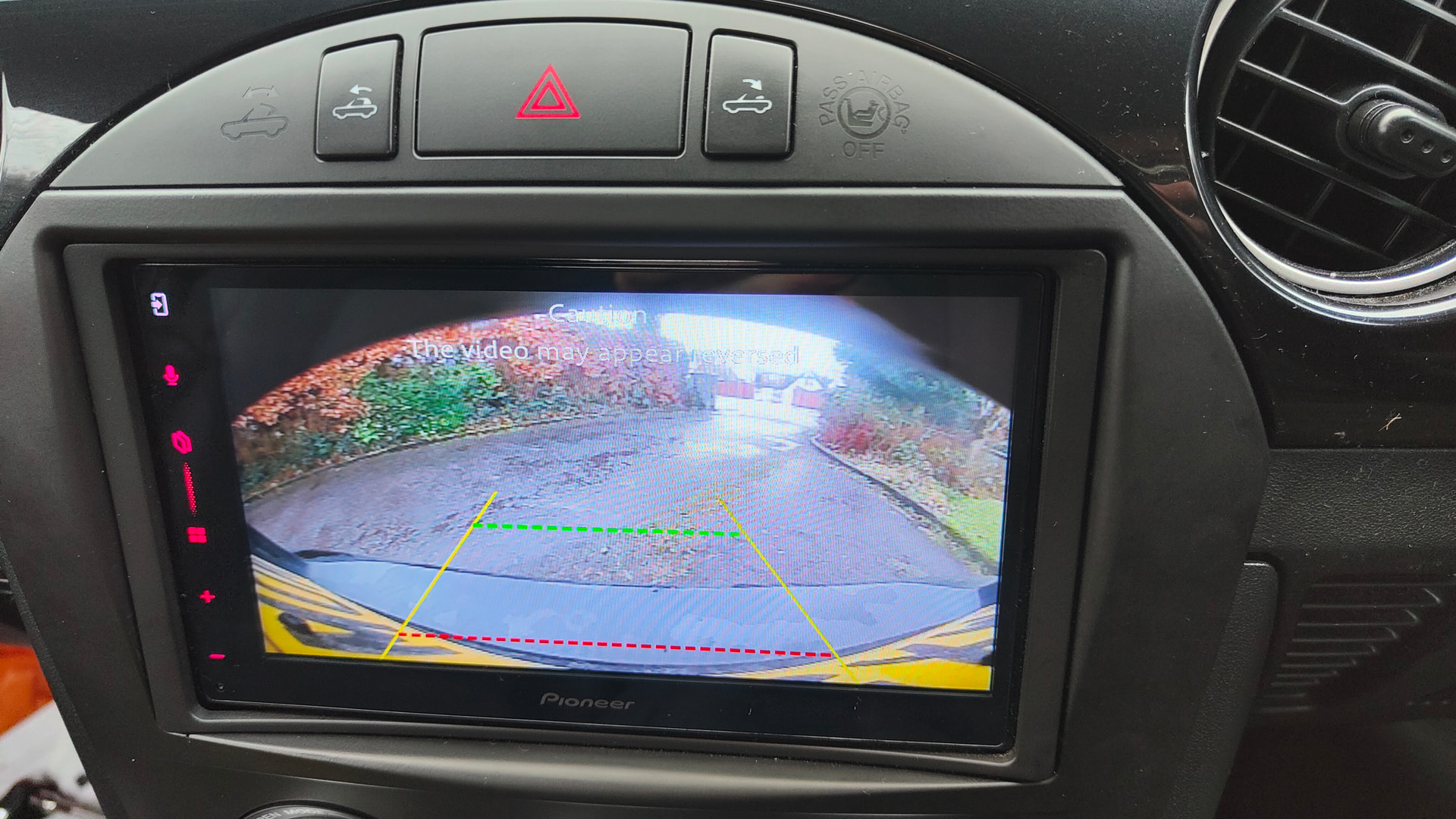

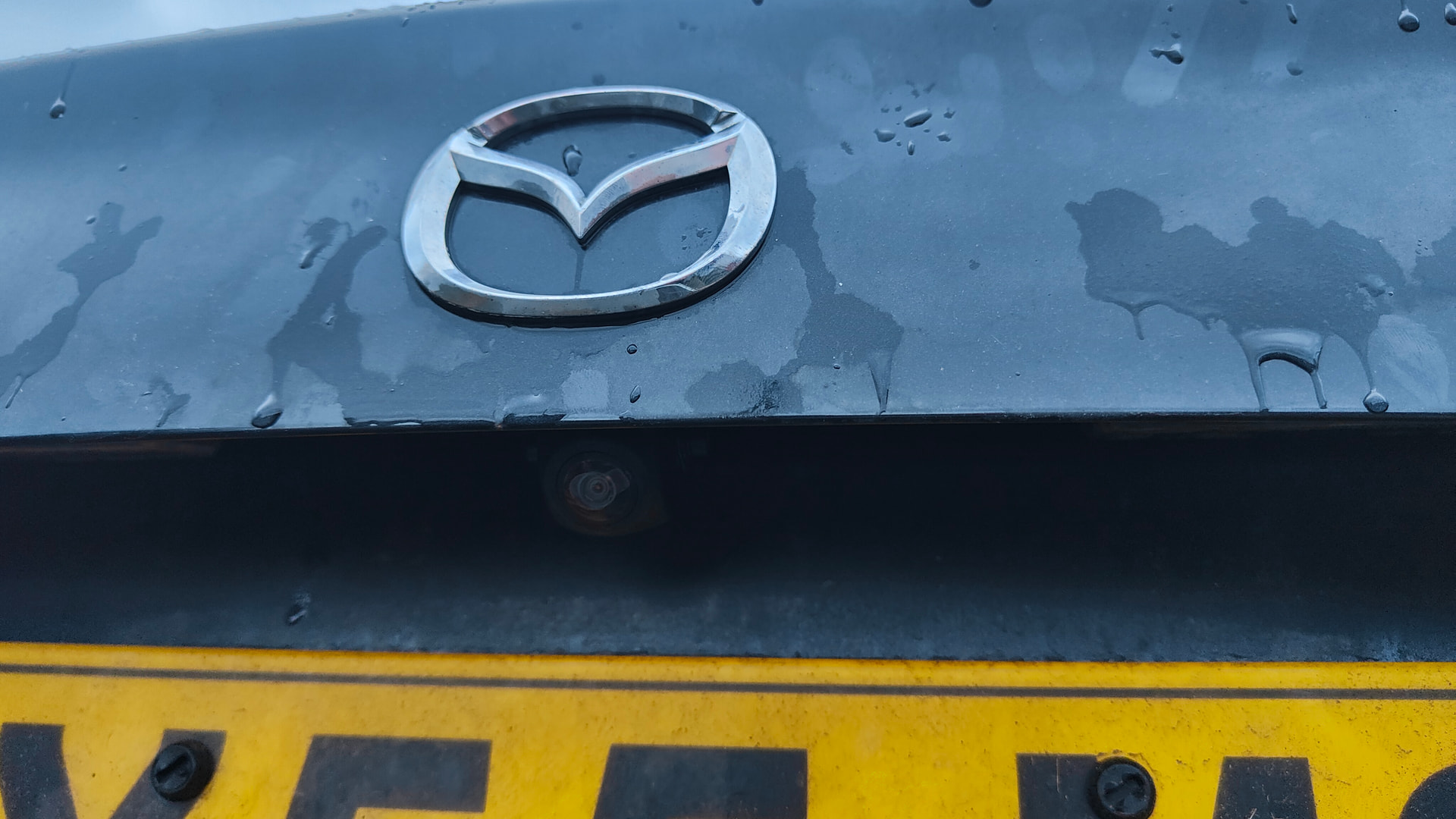

Camera is mounted to the standard âblankâ plate on the boot lid. Notch cut out to feed wire internally then black sealant on the small holes left. Adjusted the lines and reversed the image on the head unit afterwardsâŚ
Booked it in to have the fuel line fixed re the ND recall notice.
Canât post on that particular thread as itâs been closedâŚ..
But, anyone still waiting to hear about when they should take theirs in for the work to be done, well donât wait contact your dealer. My local dealer has booked me in, I had to initiate contact because the letter sent to me, as someone else pointed out, is a little confusing as to who will make contact next, the dealer certainly didnât know to.
I explained to them about the letter, how did they know about my car, they didnât until I gave them the reg number., Iâm not on their systems. Anyways Beechwood Mazda, Derby very efficient, seems theyâve got the parts the fix will be done in less than two weeks
Plinth delete
Installed full Zunsport
Front and rear plate holders
Changed to my reg and notified insurance
Brand new plates.
Docked the tail

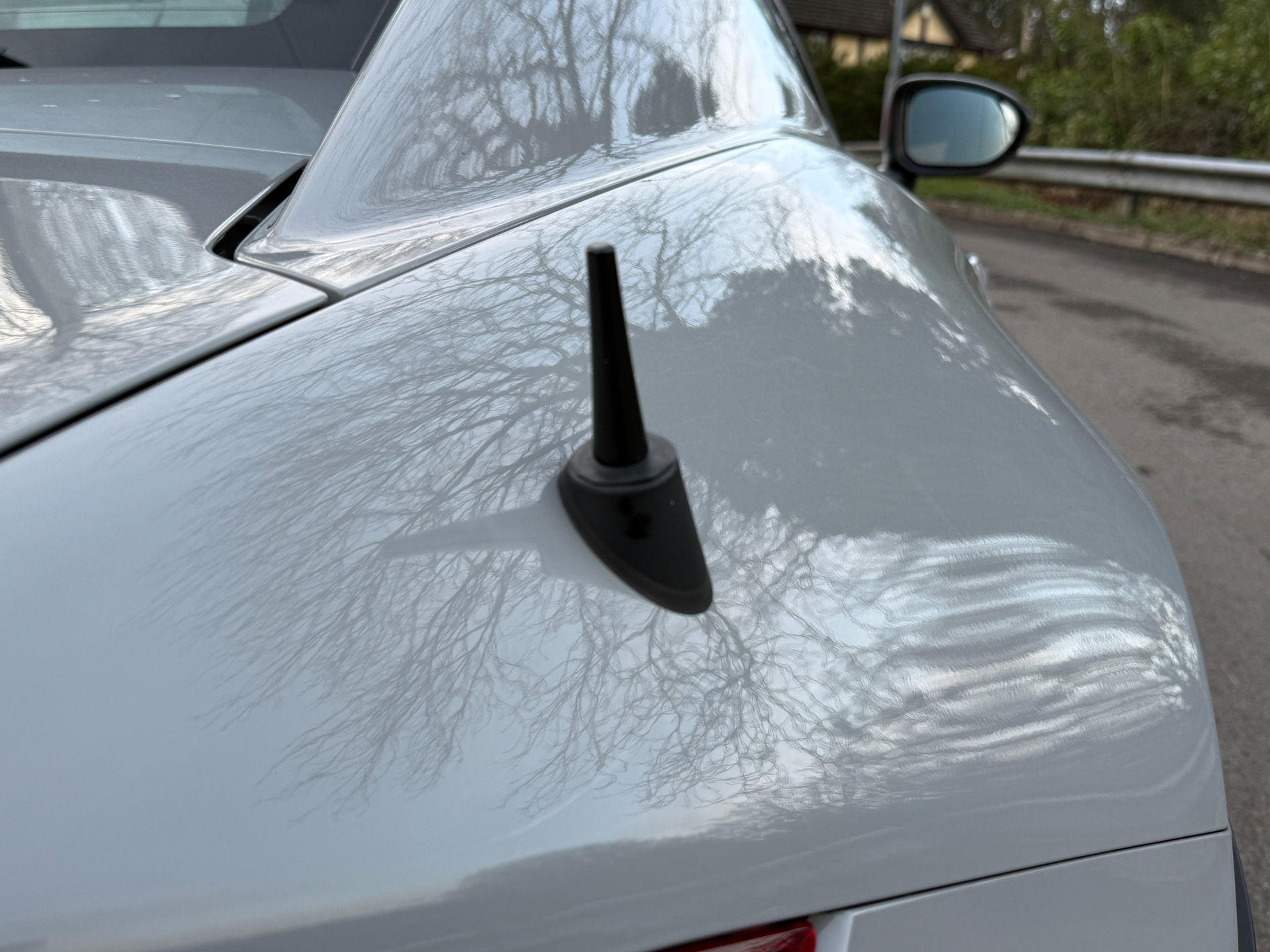

(Found an old 1990 Motorola walkie-talkie ariel in a draw)
Today I have been arranging the yearly spend the tax now paid ÂŁ195.00 for the year Mot ÂŁ50.00 now booked in next week car insurance with A/Flux /no claims covered 23 years /recovery etc,etc, ÂŁ279.10 full comp 4k miles a year for just under ÂŁ525.00 for this years fun ⌠quite happy with that âŚ.so I can play with is
Full service will be done by me this year âŚat 0 cost as I had 4 lots of oil/spark plugs filters,dif oil gear box oil⌠the hole kit and cabudal on my shelf for the last two years lol
had an issue with my ND headunti reoobting a few min after driving each day. posted about it, forum fixed it.

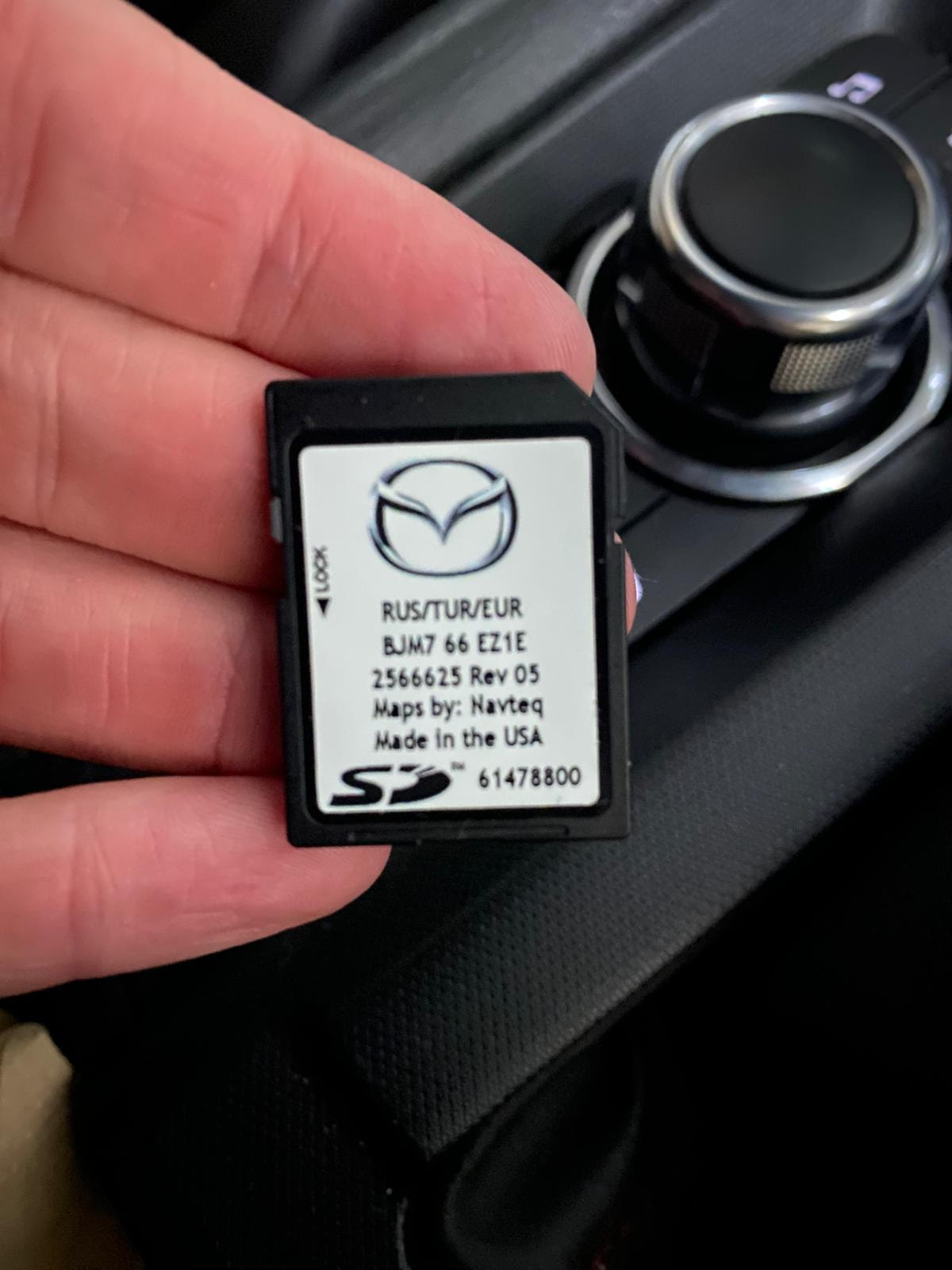

this little chappy (SD card) came out. problem solved.
the tax now paid ÂŁ195.00 for the year
Mot ÂŁ50.00 now booked in next week car insurance with A/Flux /no claims covered 23 years /recovery etc,etc, ÂŁ279.10 full comp 4k miles a year for just under ÂŁ525.00 for this years fun ⌠quite happy with that âŚ.so I can play with is
